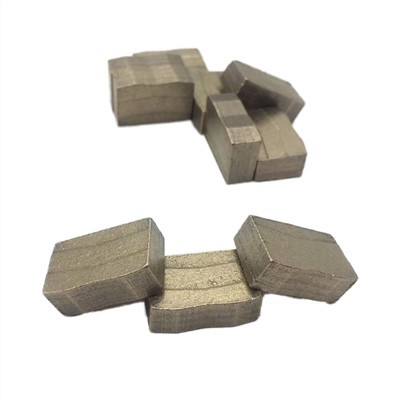

Olmos segmentli tosh kesish asboblari
Tavsif:
Spetsifikatsiya:
| 300-800mm olmosli arra uchun segmentlar | ||||||
| Diametri | Yadro qalinligi (mm) | Segment o'lchami (mm) | Tishlar soni | |||
| mm | dyuym | Uzunlik | Qalinligi | Balandligi | ||
| 300 | 12" | 2.0/2.2 | 40 | 2.8/3.0 | 8/10/12/15 | 21 |
| 350 | 14" | 2.2/2.4 | 40 | 3.0/3.2 | 8/10/12/15 | 24 |
| 400 | 16" | 2.6/2.8 | 40 | 3.4/3.6 | 8/10/12/15 | 28 |
| 450 | 18" | 2.8/3.0 | 40 | 4.0/4.2 | 8/10/12/15 | 32 |
| 500 | 20" | 2.8/3.0 | 40 | 4.0/4.2 | 8/10/12/15 | 36 |
| 600 | 24" | 3.6 | 40 | 4.6 | 8/10/12 | 42 |
| 700 | 28" | 4 | 40 | 5.2 | 8/10/12 | 42 |
| 800 | 32" | 4.5 | 40 | 6.0 | 8/10/12 | 46/57 |
| 900-3500mm bitta/koʻp pichoqli segmentlar | ||||||
| Diametri | Yadro qalinligi (mm) | Segment o'lchami (mm) | Tishlar soni | |||
| mm | dyuym | Uzunlik | Qalinligi | Balandligi | ||
| 900 | 36" | 5 | 22/24 | 6.0/6.6 | 12/13/15 | 64 |
| 1000 | 40" | 5.5 | 22/24 | 6.4/7.0 | 12/13/15 | 70 |
| 1200 | 48" | 6 | 22/24 | 7.4/8.0 | 12/13/15 | 80 |
| 1400 | 55" | 6.5 | 22/24 | 7.8/8.4 | 12/13/15 | 92 |
| 1600 | 64" | 7.2 | 22/24 | 8.4/9.0 | 12/13/15 | 108 |
| 1800 | 72" | 8 | 22/24 | 9.2/9.8 | 12/13/15/20 | 120 |
| 2000 | 80" | 8 | 22/24 | 9.5/10.5 | 12/13/15/20 | 128 |
| 2200 | 88" | 9 | 22/24 | 10.5/11.5 | 12/13/15/20 | 132 |
| 2500 | 110" | 9 | 22/24 | 11.5/12.5 | 12/13/15/20 | 140 |
| 3000 | 120" | 10 | 22/24 | 12.5/13.5 | 12/13/15/20 | 160 |
| 3500 | 140" | 10 | 22/24 | 13.5/14.5 | 12/13/15/20 | 180 |
* Boshqa spetsifikatsiyalar so'rov bo'yicha mavjud.
TSS
1-savol: Siz zavod yoki savdo shirkatisiz?
A1: Biz zavodmiz.
2-savol: Sifatni qanday bilishim mumkin?
A2: Sinov o'tkazishga harakat qiling, bizning segmentlarimizdan foydalanganingizdan so'ng, sifatni bilib olasiz. Sizning talablaringiz bo'yicha, siz xohlagan mahsulotni ishlab chiqarish. Pls xavotir olmang, biz olmos asboblari sanoatida 16 yillik tajribaga egamiz.
3-savol: Minimal miqdor haqida nima deyish mumkin?
A3: Har qanday miqdordagi buyurtma mavjud.
4-savol: Qanday qilib eng yaxshi mos olmos segmentlarini olishim mumkin?
A4: Bizga toshingiz va olmos arra pichog'ingiz haqida batafsil ma'lumot bering. Biz sizga maslahat beramiz.
5-savol: Sizning to'lov shartlari qanday?
A5: To'lov jo'natishdan oldin 100% T / T bo'lishi kerak.
6-savol: Agar mahsulotingiz yaxshi ishlamasa, nima qilishimiz mumkin?
A6: Iltimos, bizga batafsil ma'lumot bering. Biz mumkin bo'lgan sabablarni tahlil qilishimiz mumkin, muammoni topishga harakat qilamiz, keyin ularni qanday hal qilishni aytamiz.
Spetsifikatsiya:
*250-800mm
| Diametri (mm) | Segment hajmi (mm) | Segment № (dona/to'plam) | Payvandlash usuli | Tuzilishi | ||
| Uzunlik | Kengligi | Balandligi | ||||
| 250 | 40 | 2.5 | 8/10 | 18 |
Kumush payvandlash yoki Lazerli payvandlash |
Ko'p qatlamli yoki Qatlamsiz
|
| 300 | 40 | 3.2 | 8/10 | 21 | ||
| 350 | 40 | 3.2/3.4 | 8/10 | 24/25 | ||
| 400 | 40 | 3.6 | 8/10 | 28 | ||
| 450 | 40 | 4.0 | 8/10 | 32 | ||
| 500 | 40 | 4.2 | 8/10 | 36 | ||
| 550 | 40 | 4.4 | 8/10 | 38 | ||
| 600 | 40 | 4.6 | 8/10 | 42 | ||
| 700 | 40 | 5.0 | 8/10 | 50 | ||
| 725 | 40 | 5.5 | 8/10 | 50 | ||
| 800 | 40 | 5.2 | 8/10 | 46 | ||
*900-3500mm
| Diametri (mm) | Segment o'lchami (mm) | Segment raqami | Payvandlash usuli | Tuzilishi | ||
| Uzunlik | Kengligi | Balandligi | ||||
| 900 | 24 | 7.0/6.5 | 10/12/15/20 | 64 |
Kumush payvandlash yoki Lazerli payvandlash |
Ko'p qatlamli yoki Qatlamsiz |
| 1000 | 24 | 7.0/6.5 | 10/12/15/20 | 70 | ||
| 1100 | 24 | 7.4/6.8 | 12/15/20 | 74 | ||
| 1200 | 24 | 7.5/7.0 | 12/15/20 | 80 | ||
| 1300 | 24 | 8.0/7.5 | 12/15/20 | 88 | ||
| 1350 | 24 | 8.4/7.7 | 12/15/20 | 88 | ||
| 1400 | 24 | 8.5/8.0 | 12/15/20 | 96 | ||
| 1600 | 24 | 9.0/8.7/8.4 | 12/15/20 | 108 | ||
| 1700 | 24 | 9.4/8.9/8.4 | 12/15/20 | 112 | ||
| 1800 | 24 | 9.5/9.0 | 12/15/20 | 120 | ||
| 2000 | 24 | 10.5/9.5 | 12/15/20 | 128 | ||
| 2200 | 24 | 11.5/10.5 | 12/15/20 | 132/136 | ||
| 2500 | 24 | 12/11.5/11 | 15/20/25/30 | 140 | ||
| 2700 | 24 | 12/11.5/11 | 15/20/25/30 | 140 | ||
| 3000 | 24 | 12.5/12/11.5 | 15/20/25/30 | 160 | ||
| 3500 | 24 | 13/12.5/12 | 15/20/25/30 | 180 | ||
